Primary Heating Cable

Spiral Winding Resistance Wires

The Spiral Wire is a low-wattage, high-resistance heating solution. It consists of a Nichrome, copper alloy, or stainless-steel wire helically wound around fiberglass yarn. It is insulated with a durable jacket of silicon or Teflon. It is also insulated with fiberglass yarn S glass/ E glass in the form of serve shield and braided again with fiberglass yarn S glass/ E glass. This construction ensures flexibility, reliability, and safe operation in a wide range of applications.

Features and Application

– Available with single, double or triple helical conductor designs to meet specific wattage requirements.
– Ideal for applications requiring low wattage heating.
– Commonly used in electric blankets, heating pads, heating jackets, towel rails, and greenhouses.
– Application in semi-conductor industry, orthopaedics, life sciences, etc.

Technical Details

– Available Power: 3W-20W
– Voltage: 5V/12V/24V/36V/48V/60V/72V/110V/220V
– Resistance: 1.25-2500Ω/m
– Cable Diameter: 1.10mm-4.0mm

Standard Resistance Cable Long Length on Bulk Spools

Loose cable heating is an ideal solution for small or irregularly shaped areas. The heating cable is installed directly beneath the finished floor—whether tile, marble, or parquet. Its variable spacing allows installers to customize the layout, easily navigating around fixtures and following the room’s unique pattern to meet specific heating requirements efficiently.

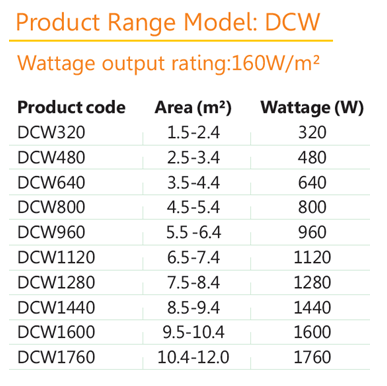

Dual Core Heating Cable

Technical Details

– Linear Wattage Density: 10W/m -18W/m
– Rated Voltage: 230V, 50Hz
– Maximum operation Temperature: 90°C
– Conductor: Twin core, Class-2 resistance alloy
– Core Insulation: Advance Fluoropolymer
– Earth Shield: Copper Braid or Drain Wire + Al-foil
– Outer Sheath: HRPVC/XLPO/TPE
– Cold lead connection: Type-Y attachment (Upto 4 m)-3 Core (Optional)
– Cable diameter: 3.60mm to 5.25mm depending upon the insulating materials and customer
requirements

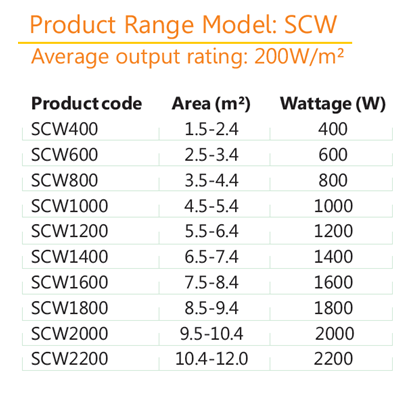

Single Core Heating Cable

Technical Details

– Linear Wattage Density: 10W/m – 15W/m
– Rated Voltage: 230V, 50Hz
– Maximum Operation Temperature: 90°C
– Conductor: Single core, Class-2 resistance alloy
– Core Insulation: Advance Fluoropolymer/XLPE
– Earth Shield: Copper shielding
– Outer Sheath: HRPVC/XLPO/TPE
– Cold lead connection: Type- Y attachment (Upto 4m)-2 core cable on each side
– Cable diameter: Upto 3.25mm depending upon the insulating materials and customer requirements

Self-Regulating Heating Cables

It dynamically varies its heat output in response to ambient temperature. Providing efficient and uniform heating. It eliminates the risk of over-heating, enhances energy savings, and is well suited for pipe tracing, freeze protection and industrial application.

Technical Features

– Power output: 10W/Mtr to 40W/Mtr
– Rated voltage: 110V/230V AC
– Max. Temperature maintenance: 65 Degree C upto 85 Degree C (depending upon construction).
– Maximum Exposure temperature: 85 Degree C upto 200 Degree C.
– Minimum Installation Temperature: -40 Degree C
– Conductor Type: Parallel Bus-Wires with Self-regulating conductive polymer matrix made of semi-conductor PTC extruded evenly between 2 parallel buswires.
– Outer Sheath: HRPVC/XLPO/Fluoropolymer (UV & Chemical resistant options are available).
– Cable Dimensions: 6mm – 12mm
– Protection: Tinned copper braid for mechanical protection and grounding.

Key Advantages

– Automatically adjust heat output in response to surrounding temperature.
– Prevents overheating when the cables are crossed.
– The parallel design supports the heating cable to cut and install to any required length.
– The protective outer jacket of either polyolefin or fluoropolymer protects the copper braid against corrosion.

Applications

– Pipe freeze protection
– Roof & gutter de-icing
– Tank and vessel heating
– Floor heating systems
– Oil & gas pipelines
– Chemical and process industries

Freeze Protection / Pipe Trace Cables

These ready-to-install heating cables are flexible, efficient, and consume 15W per meter, compliant with IEC 60800 standards. Designed for both domestic and commercial applications, they prevent water in pipes and other systems from freezing. For maximum heat transfer, the cables are flat-shaped to ensure optimal contact with the object being heated.

FPT (Pipe Trace Heating)

– Designed specifically to prevent water pipes from freezing.
– Equipped with an in-built thermostat/temperature limiter that switches ON at 5°C and OFF at 15°C.
– Operates on 230V AC.

Product Range
